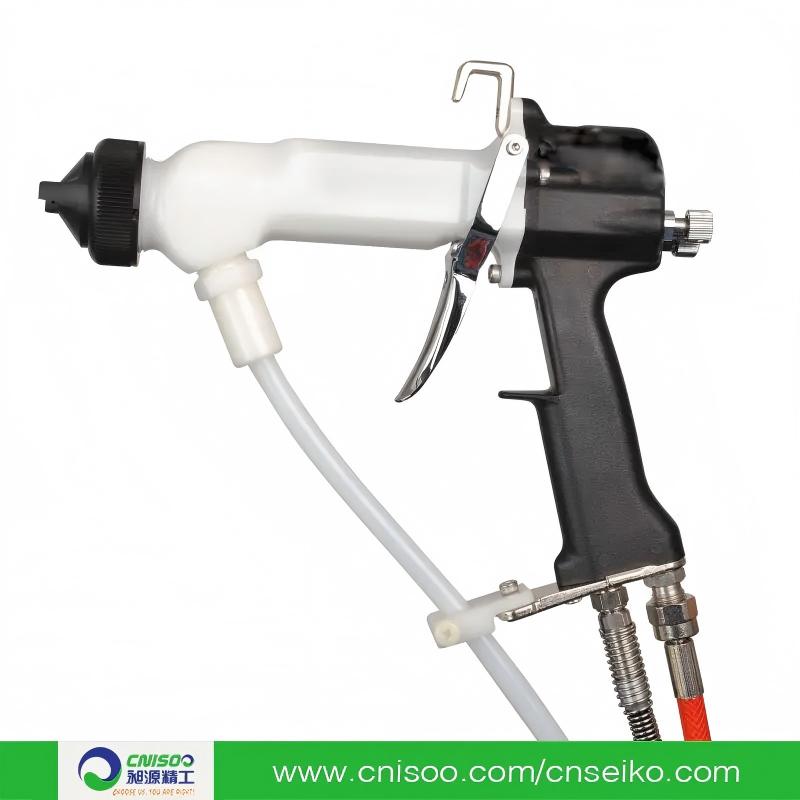

Manual electrostatic spray gun with precise control

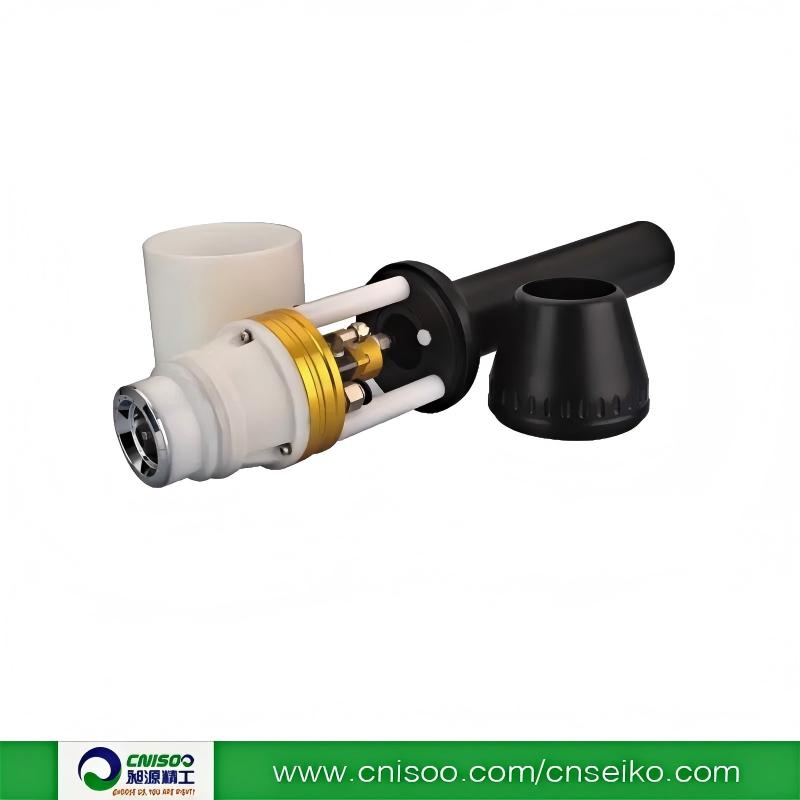

Automatic Bell Electrostatic Spray Gun - Eco-Friendly and Cost-Effective Painting Solution
Automatic Bell Electrostatic Spray Gun - Eco-Friendly and Cost-Effective Painting Solution
- E-Bell
- 200
- 10Pcs
- Cash on delivery
- Lssued in 2 hours
PRODUCT FEATURES
EB combines the advantages of air suspension and bearing rotary cup electrostatic spray gun,uses gas suspension to quickly produce fine atomization characteristics,combines the bearing’s durable and stable characteristics,and increases the friction coefficient to reduce the number of hardware contacts in air suspension=the same delicate Paint particles to ensure efficient transfer of paint.Applying this principle to the spraying process,the surface of the product can be evenly coated,the gloss is high,and the electrostatic ions are evenly distributed,so that the adhesion of the coating is more uniform.
All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.
| Model:E-Bell | ||||||||
| Perforance parameter | ||||||||
Rotating cup diameter | Maximum speed | Use voltage | Atomizing air consumption | Rotating air consumption | Paint discharge | Spray distance | Dimensions | Weight |
| Φ 32mm/Φ 50mm/Φ 60mm/Φ 70mm | 650000 rрm | 0-60ky | 20-500 NL/min | 100-1000 NI/min | 0-300 cc/min | 200-300 mm | 100-500 mm | 2.78kg |
Product presentation
Electrostatic spray gun is the basic product of modern industrial spraying equipment. In the coating process line, electrostatic spray gun is the main body of the most core equipment for surface treatment. By using low pressure and high atomization device and generating electrostatic electric field force through electrostatic generator, the coating can be sprayed to the surface of the coating efficiently and quickly, so that the coating can achieve perfect surface treatment. Therefore, the electrostatic spray gun takes the grounded coating as the positive electrode and the coating atomization device as the negative electrode. And the coating atomization device with high negative voltage, in the diode made of electrical boundary, so that the atomized coating particles with negative charge, so that the coating is effectively absorbed on the surface of the opposite electrode method is called electrostatic coating.
In the implementation of electrostatic coating, the grounding of the coating is an important prerequisite, and the coating must be a good conductor of electricity. Wood is generally considered to be a poor electrical conductor, but when the tax rate is more than 8%, electrostatic coating can be implemented, and has been confirmed empirically.
This is the usual electrostatic coating, the current value between the positive and negative diodes is 20 ~ 50 MICRO-AMPERE (micro-ampere), very small, so although it is like wood, the object with large resistance value can also implement electrostatic coating
Features of rotating cup automatic electrostatic spray gun
● EB Rotary cup electrostatic spraying machine high-speed centrifugal force atomization,uniform spray width and electrostatic repellency atomization can obtain the best coating quality,and has a very high painting efficiency;
● Save paint,improve production efficiency,reduce coating pollution and improve working environment;

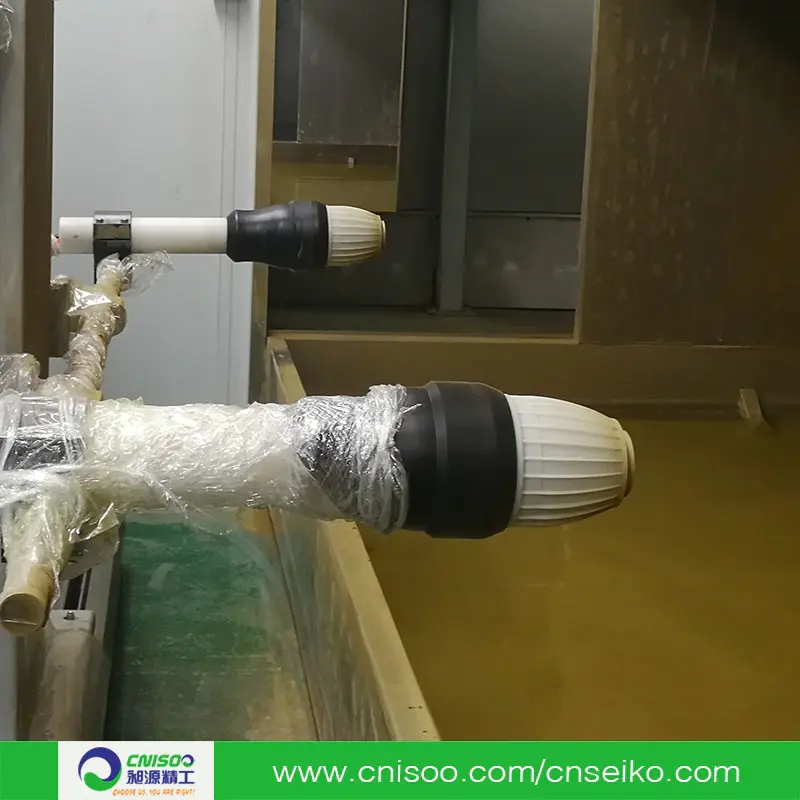

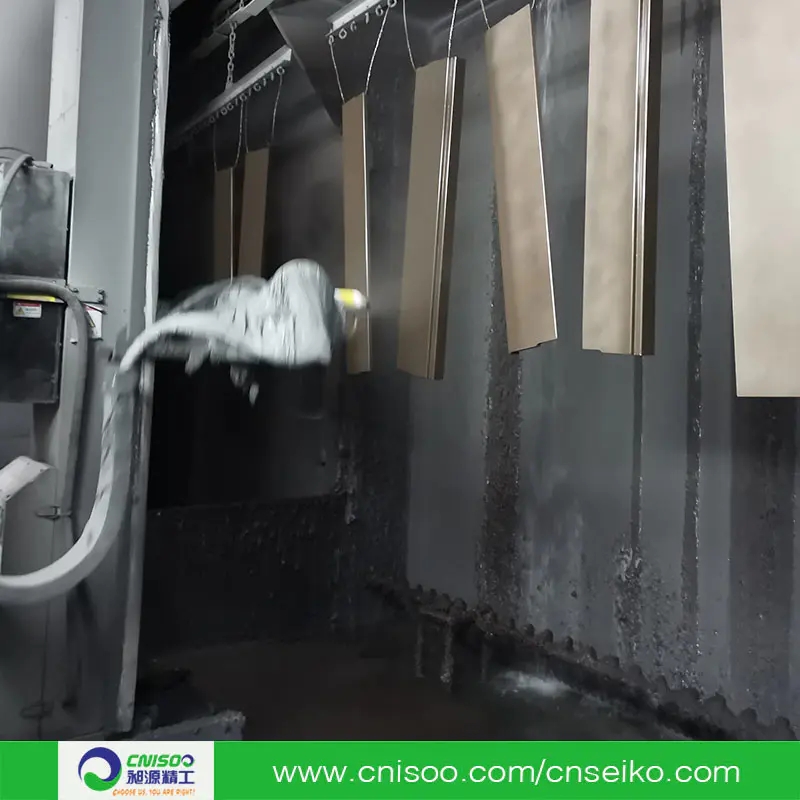

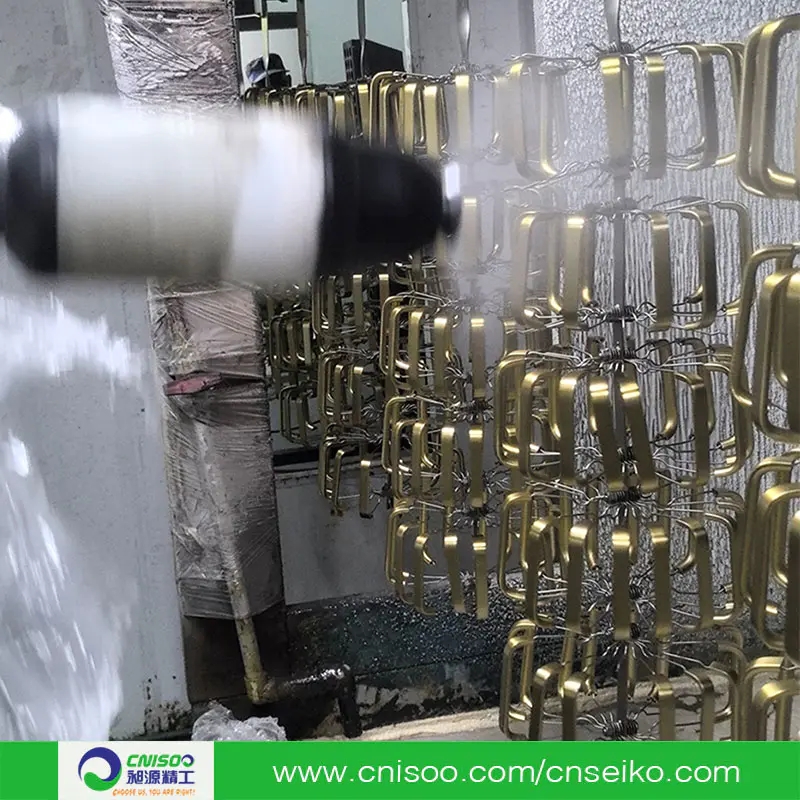

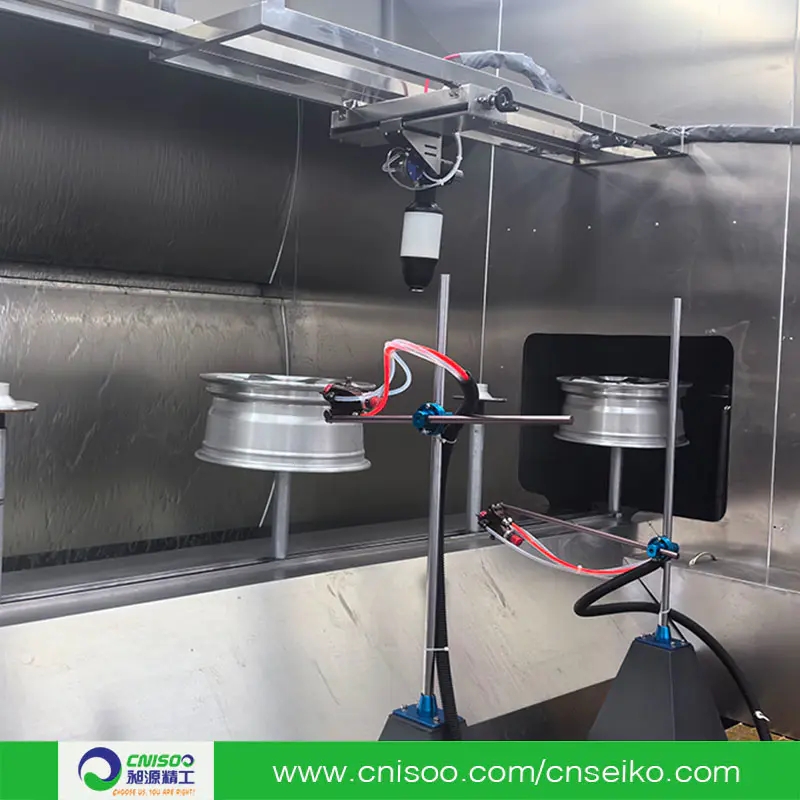

● Rotating cup automatic electrostatic spray gun、with light weight and small volume,can be automatically sprayed with reciprocating machine and robot;
● Rotating cup electrostatic spray gun is easy maintain、the protective sleeve of pipeline and spray gun can prevent the pollution of spray gun and pipeline,and the circular appearance is easy to clean;
● The product quality is reduced,only2.78kg,the adjustment range is expanded;
● The motor is reduced in volume,noise is reduced,and the speed is up to 65,000 rpm.
● The paint three-way control valve is built in,and the control is faster for aging feedback;
● Double-layer cup and saucer,no dead ends in the flow path,cleaning is quicker and more convenient;
● The gun body is made of anti-shock material to avoid static leakage and anti-adsorption of paint;
