Manual electrostatic spray gun with precise control
Manual electrostatic spray gun, electrostatic paint sprayer
Manual electrostatic spray gun, electrostatic paint sprayer
- ME-Sever
- 2150
- 1Pcs
- Cash on delivery
- 1-7 days
PRODUCT FEATURES
Vehicle: auto body, auto parts, resin molding parts;
Motor: distribution box, control panel, air conditioning machine, OA machinery, home appliance products;
Building materials, furniture: office machinery, steel furniture, door and window frames, walls, building materials board
Machines: construction machines, machine tools, industrial machines
Others: all metal products, gold-plated products, wood products, etc.
All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.
Spray Gun Mode | ME1 | ME2 | MEA-1 | |
Parameters | Common voltage | DC-60KV | DC-60KV | DC-75KV |
Full length | 230mm | 210mm | 270/180mm | |
Weight（body） | 490g | 470g | 1550g | |
Cable length | 5m/8m/10m | 5m/8m/10m | 5m/8m/10m | |
Suitable coatings | Cyanamide | ● | ● | ● |
Phthalic acid | ● | ● | ● | |
Acrylic resin | ● | ● | ● | |
Polyurethane | ● | ● | ● | |
Metallic luster coating | ● | ● | ● | |
Water-based paint | ● | ● | ● | |
Product presentation
Electrostatic spray gun is the basic product of modern industrial spraying equipment. In the coating process line, electrostatic spray gun is the main body of the most core equipment for surface treatment. By using low pressure and high atomization device and generating electrostatic electric field force through electrostatic generator, the coating can be sprayed to the surface of the coating efficiently and quickly, so that the coating can achieve perfect surface treatment. Therefore, the electrostatic spray gun takes the grounded coating as the positive electrode and the coating atomization device as the negative electrode. And the coating atomization device with high negative voltage, in the diode made of electrical boundary, so that the atomized coating particles with negative charge, so that the coating is effectively absorbed on the surface of the opposite electrode method is called electrostatic coating.
In the implementation of electrostatic coating, the grounding of the coating is an important prerequisite, and the coating must be a good conductor of electricity. Wood is generally considered to be a poor electrical conductor, but when the tax rate is more than 8%, electrostatic coating can be implemented, and has been confirmed empirically.
This is the usual electrostatic coating, the current value between the positive and negative diodes is 20 ~ 50 MICRO-AMPERE (micro-ampere), very small, so although it is like wood, the object with large resistance value can also implement electrostatic coating
PRODUCT DETAILS
Features of spray gun
Manual liquid electrostatic spray gun, standard equipment includes air regulator vale, electrostatic host, electrostatic spray gun and a group of white iron nozzle (customers can choose steel nozzle or iron nozzle),The above electrostatic spray gun and then with the paint delivery pump,paint filters,paint regulator valve, can constitute a complete set of liquid electrostatic spraying equipment, paint bucket into the paint ,you can start spraying.
① Gun weight is only 470g, is the industry's lightest electrostatic spray gun.
② According to ergonomic design, lightweight, good grip, good hand operation. Long time operation, not easy to feel tired.
③ The spray adjustment valve is located on the left side of the gun, allowing the user to operate.

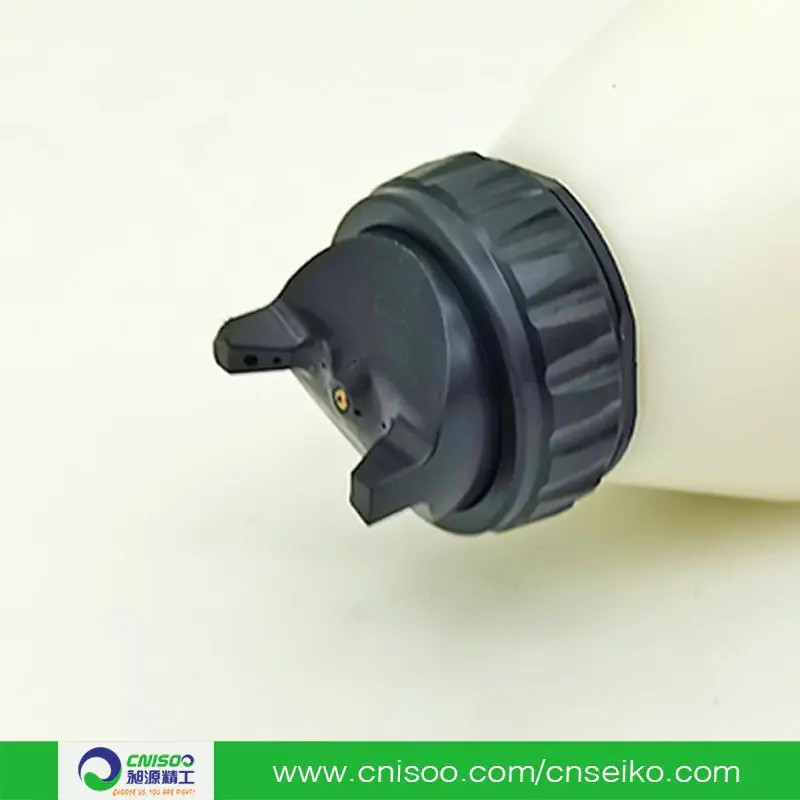

④ The use of new high-fogging white iron nozzle, can improve productivity and meet the requirements of high-quality coating surface.
⑤ Needle and seat with wear-resistant tungsten copper, can extend the service life.
⑥ Body with high-pressure resistance of the material, The handle is made of low-impedance composite material. Body structure than the general design of 1 cm long, effectively reduce the phenomenon of paint backflush.
⑦ Safety circuit design, operation error or abnormal voltage and current, the circuit protection system will automatically power of. discharge and buzzer alarm lmprove operational safety And will not burn damage to the body.
- High security: because the built-in high-voltage generator in the main body of the gun, so to achieve a high security:
- Excellent processing: equipped with excellent direct injection and far-reaching reach of the nozzle. can achieve high efficiency advanced
- high efficiency: with excellent direct injection and far-reaching reach of the nozzle. can achieve high efficiency;
- easy to use comfortable feel: As a result of resin body with lightweight, handle streamlined design, ergonomic, handle just in his hand, do not feel tired for a long time ;
- a variety of adjustment and adjustment device: turn the regulator, you can easily adjust the amount of paint spray and spray, convenient and quick;
- Fan-shaped nozzle (flat blowing nozzle) for: automotive, electrical appliances, large flat and dead angle and other electrostatic paint spray
- Steel nozzle for transparent/ general paint spray
- White iron round nozzle high-coated, high efficiency, high atomization, suitable for transparent paint liquid electrostatic spraying;
- Metal round with a tooth nozzle for electrostatic liquid transparent paint, paint, metal paint and other paint spray
good operating performance: spray the left side of the valve to adjust the adjustment easy.

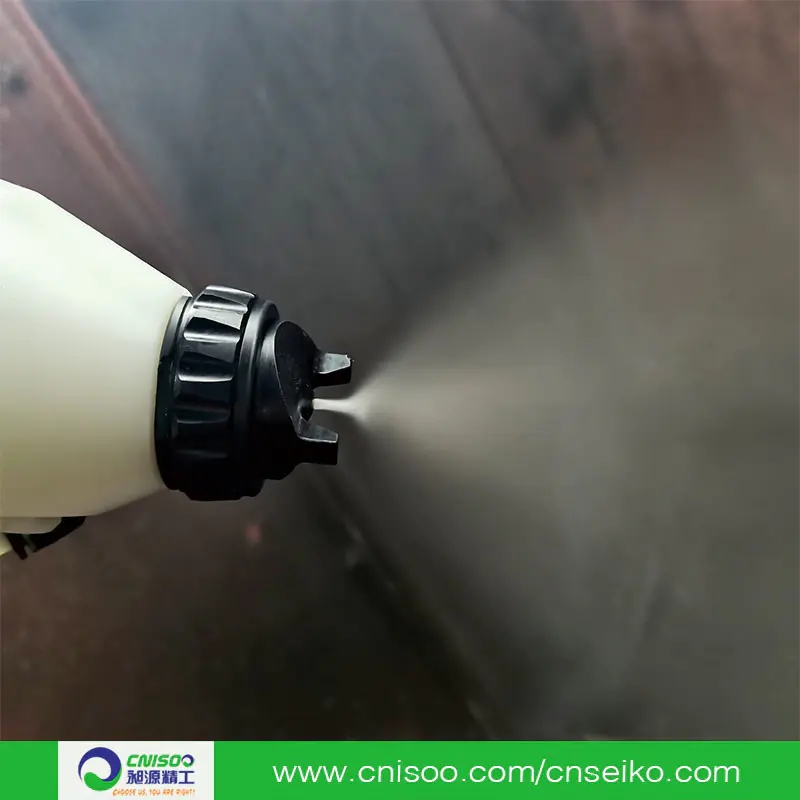

high efficiency spray:a new low-pressure high-atomization nozzle,can improve the painting rate, a substantial savings in paint
long life:paint valve seat and the use of wear-resistant tungsten steel, can be used for a long time is not easy to replace
reduce the paint back to the package: the body structure than the general design of 1 cm long, effectively reduce the phenomenon of paint back to the package.
high security : the operation error or the occurrence of abnormal voltage, current, the circuit protection system will automatically automatic power, discharge and buzzer alarm, improve job safety.
Parts maintenance easy to change: spray gun parts to achieve a unit, easy to replace, low failure rate, maintenance parts cheap
Water spray paint spray gun use(manual liquid air spray gun,spray gun,water-based paint electrostatic spray gun)
