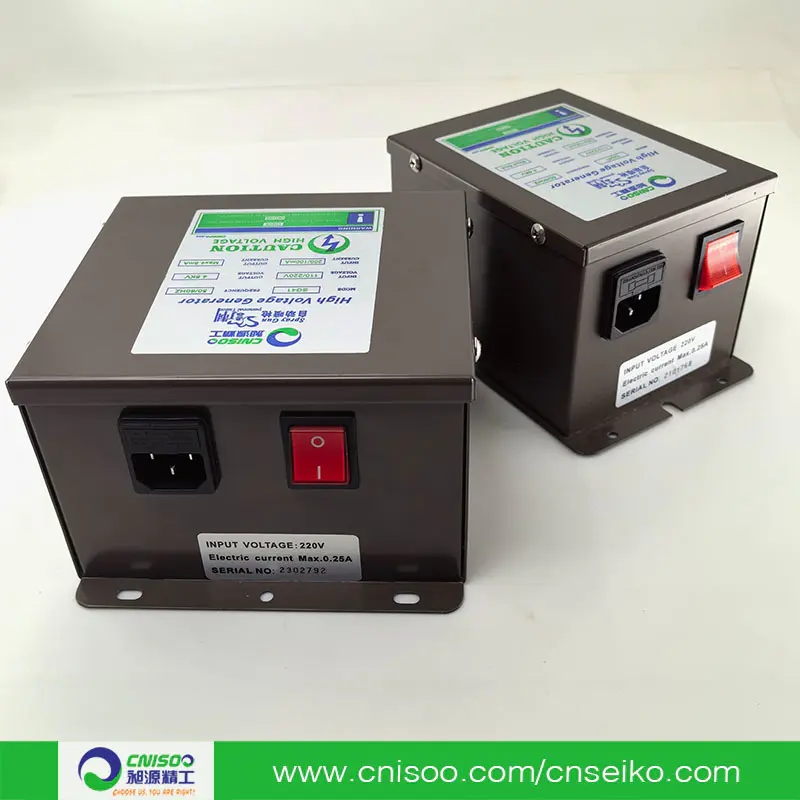

HV-2/HV-4 High Voltage Generator

USD Unit Price:: 200

MOQ:: 10Pcs

Payment:: Cash on delivery

Delivery Time:: Lssued in 2 hours

Inquire Online
Download

Cancel

PRODUCT PARAMETER

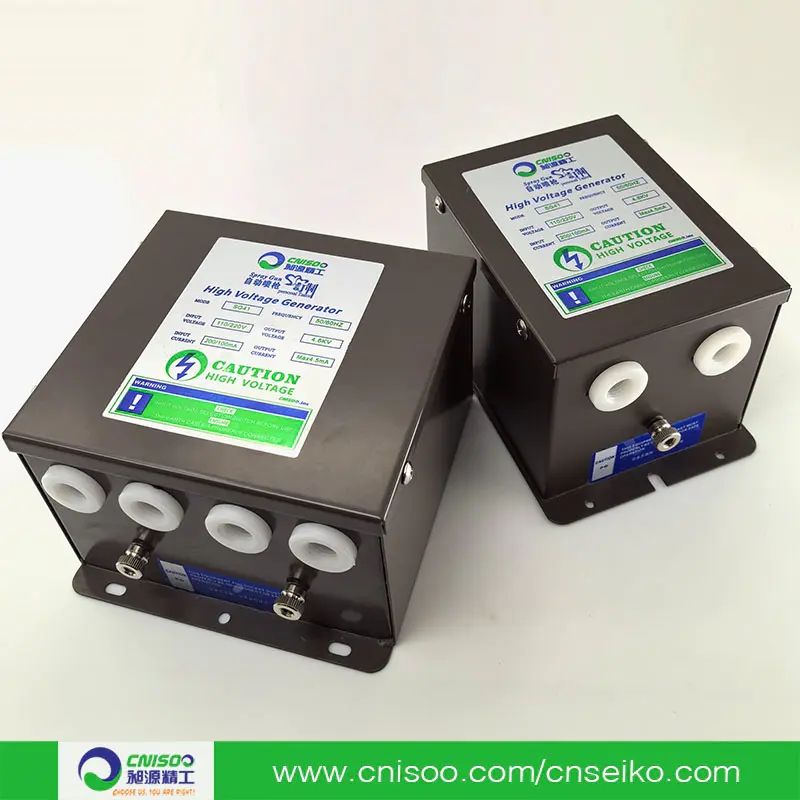

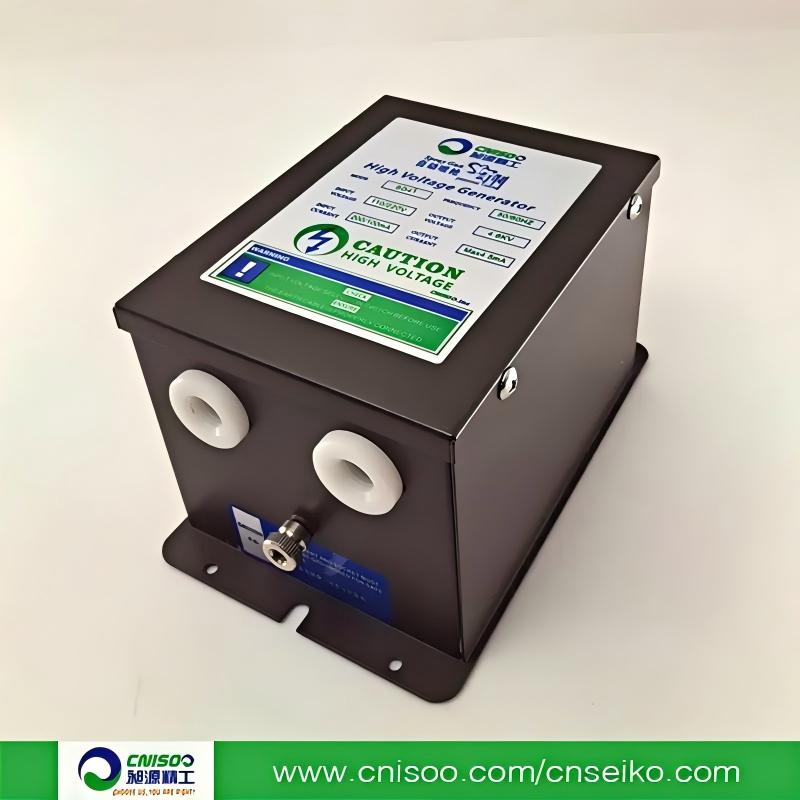

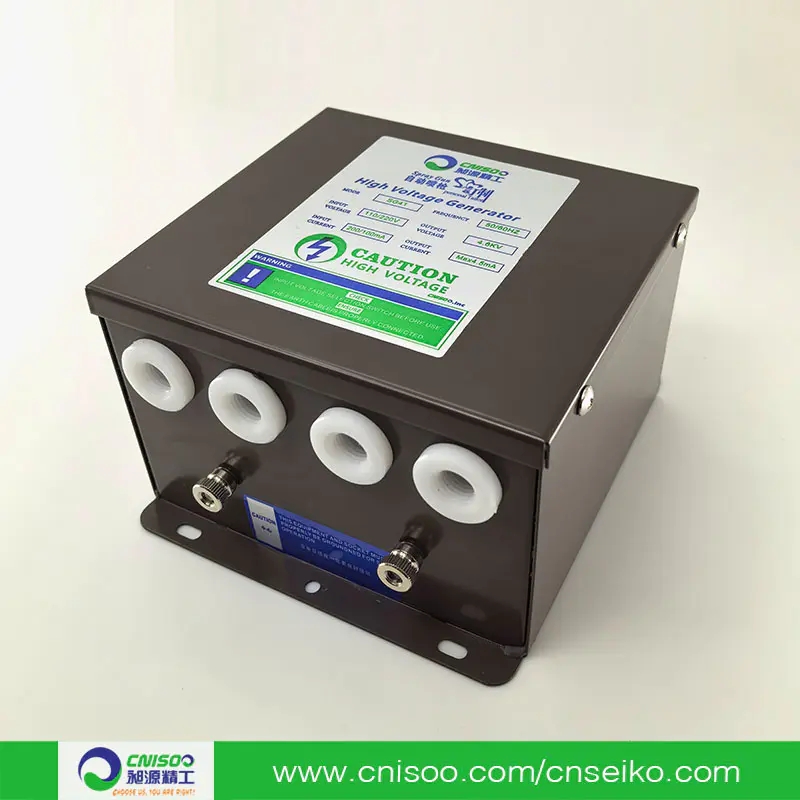

HV-2-4.625 2-bit high voltage generator / HV-4-4.625 4-bit high voltage generator

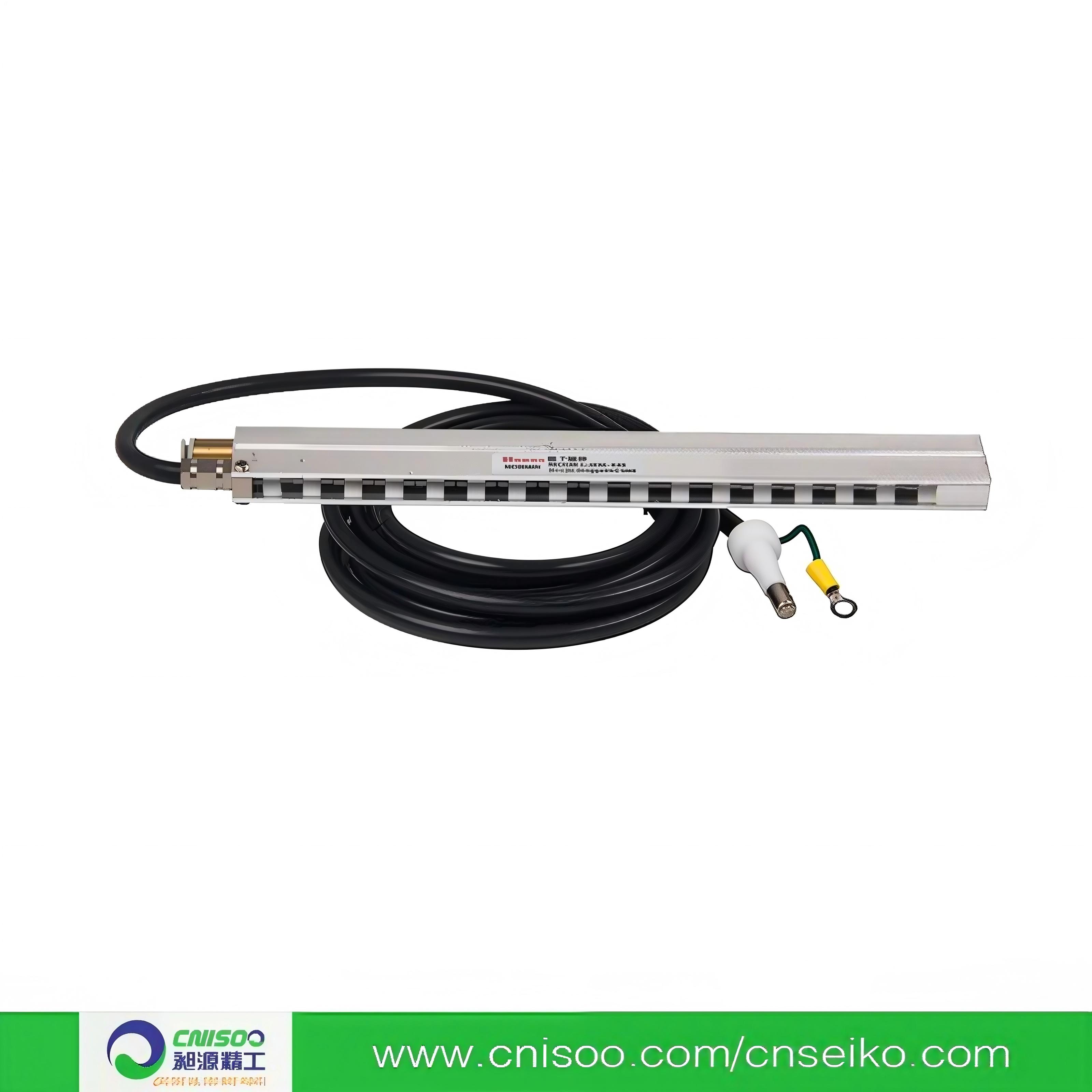

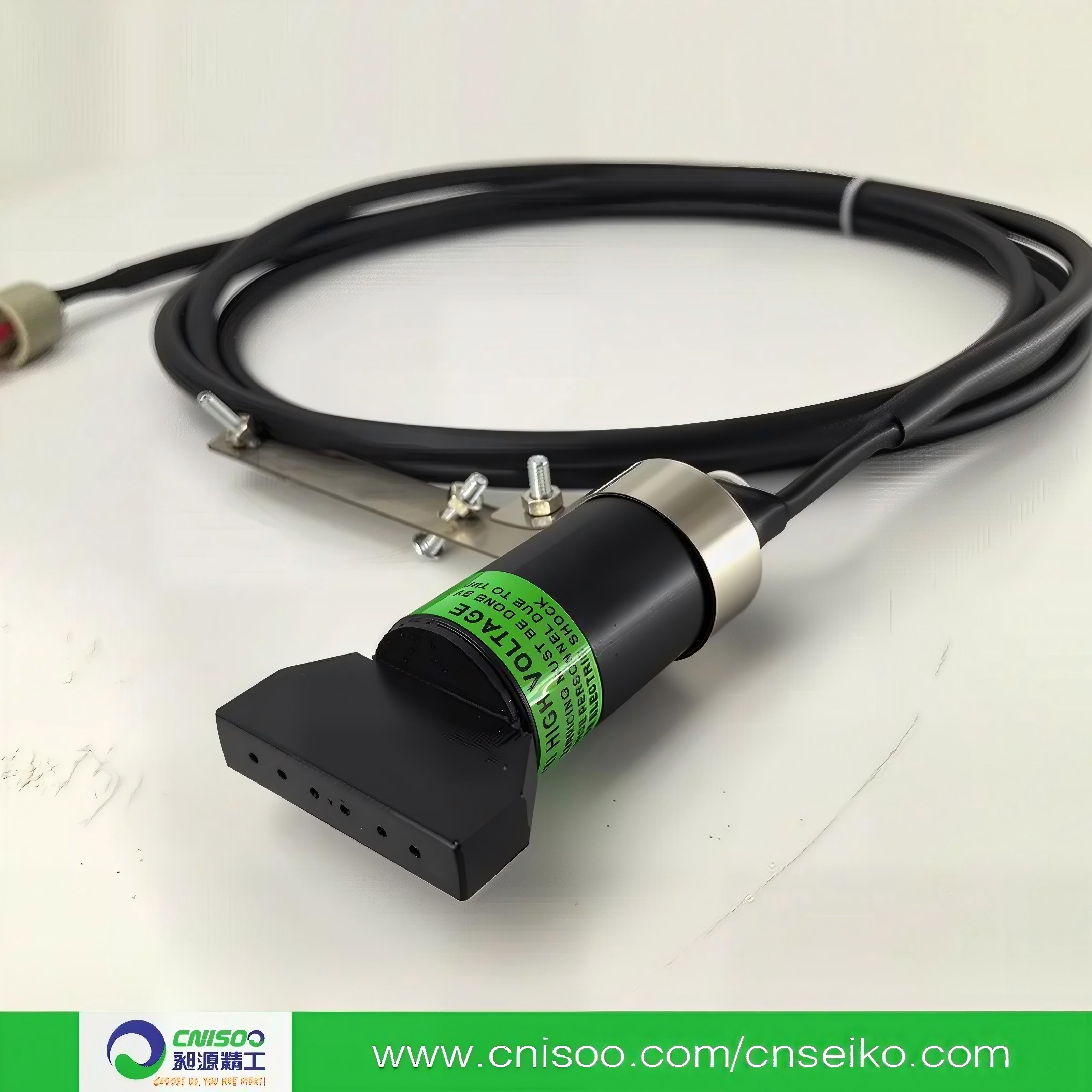

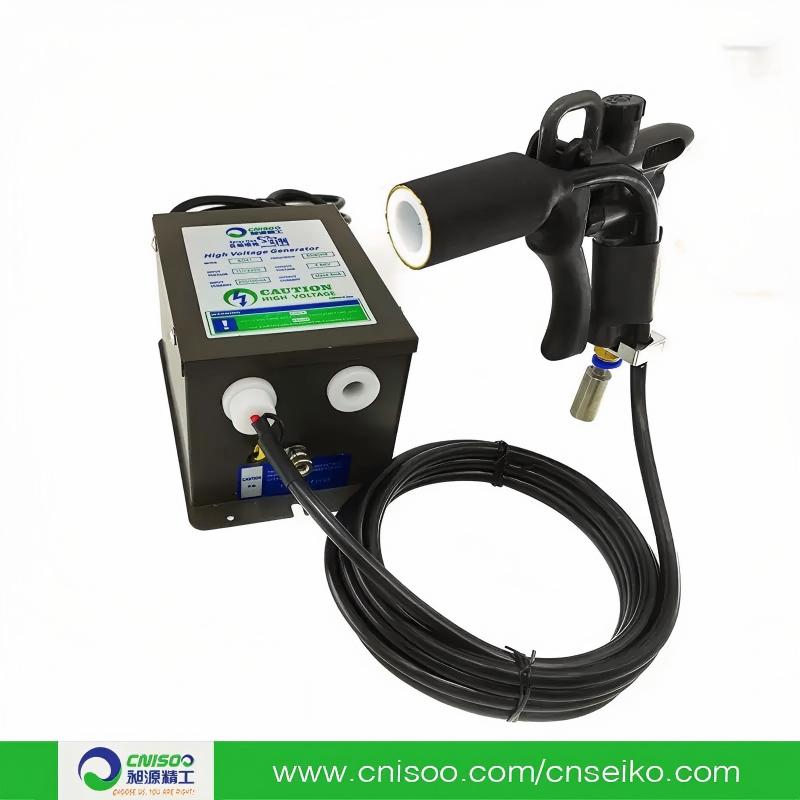

HV-2 / HV-4 high pressure generator can provide 2 or 4 electrostatic remover; such: ion air gun, ion nozzle, ion wind snake, unembroidered steel ion wind rod, ion copper rod, etc. According to the product model and the operation instructions in the package, the high voltage generator is designed for efficient electrostatic remover, with short circuit protection function.

Applied in electronics, LED photoelectric, printing, packaging, coating production line and other industries.

Specification

Model	HV-2/HV-4
Input voltage	220VAC (or) 110VAC
Power Consumption	20 VA
Operating temperature	0℃ ~ 50℃
Output Voltage	4.6KV x2
HV Cable	1.8m
Size	170mm(L)x111mm(W)x100mm(H)
weight	3KG

High Voltage Generator Instructions

High voltage generator series products are the use of high voltage transformer to boost the power frequency voltage to the required voltage, for the use of different static electricity elimination products. Considering safety concerns, the maximum short-circuit current output of all power supply products does not exceed 5mA. The supply voltage of the power supply can be selected with 110V and 220V as the supply voltage.

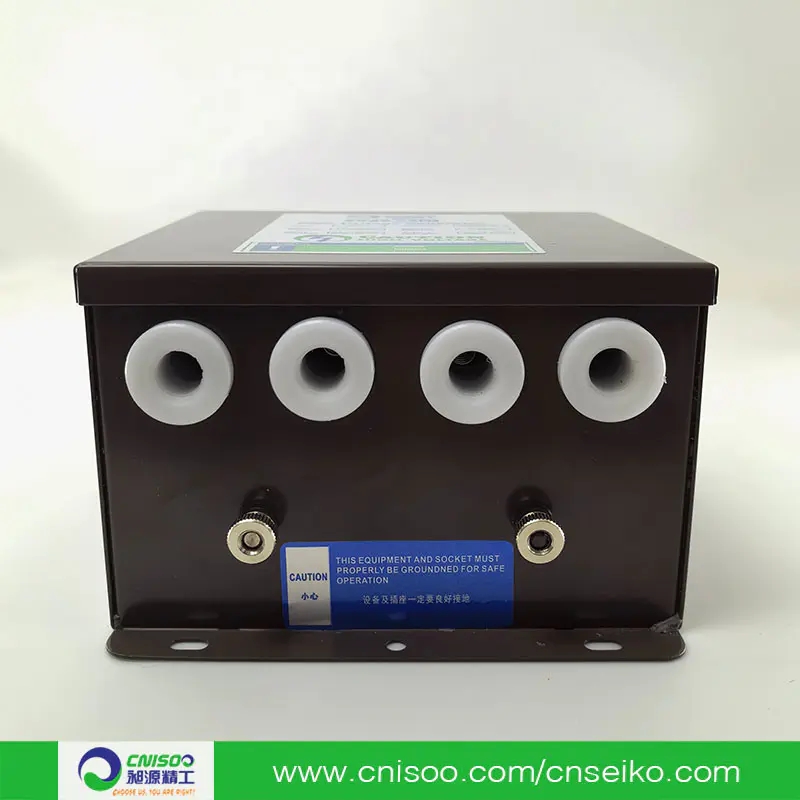

HV-4-4.625 4-bit high voltage generator is mainly used for intensive installation of electrostatic eliminator to help users save costs.

Safety Instructions

1. Read the operation instructions before installation operation.

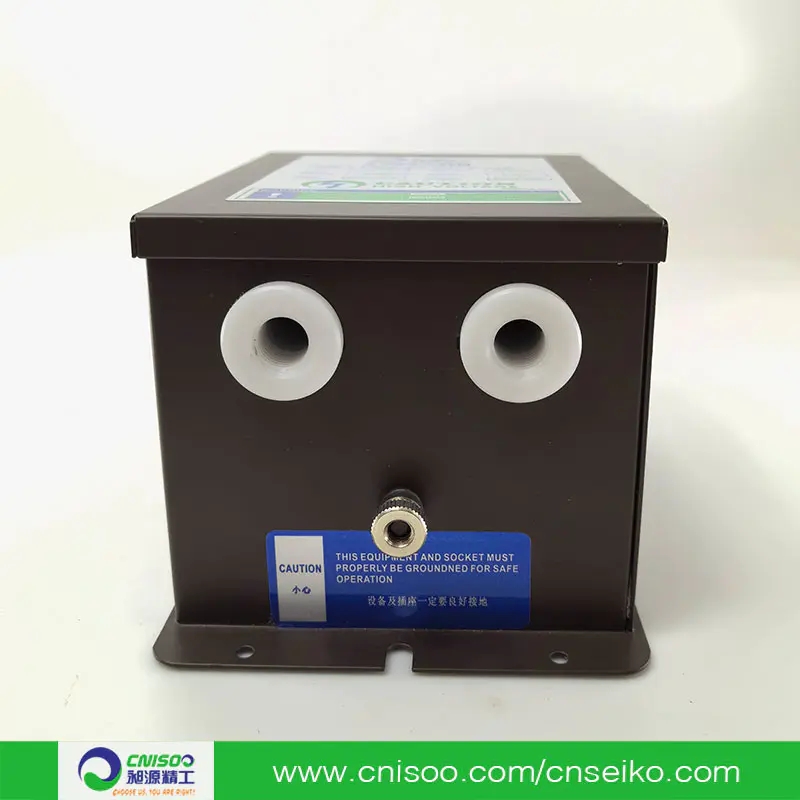

2. Ground must be reliable before operation.
3. High pressure generator can not be operated in a flammable and explosive environment.
4. Do not make repairs without authorizatio

Installation operation
The high pressure generator can be fixed in the dry ventilation place, and there are installation space at both ends of the high pressure generator, easy to fix. The plug wire of the power supply has a ground wire, please ensure that the power socket used is installed with a reliable ground wire, in case of induced voltage in the shell. The power output end and the electrostatic elimination rod, gun and air nozzle have a special connection joint, which can be tightened directly. When installing and using the power supply, ensure that the input and output voltage of the power supply should match the local municipal power voltage and the supply voltage of the product (electrostatic eliminator), so as to avoid damage to the power supply or product.
