Efficient Pneumatic Bristle Wheel Duster for Industrial Cleaning

USD Unit Price:: 200

MOQ:: 10Pcs

Payment:: Cash on delivery

Delivery Time:: Lssued in 2 hours

Inquire Online
Download

Cancel

PRODUCT FEATURES

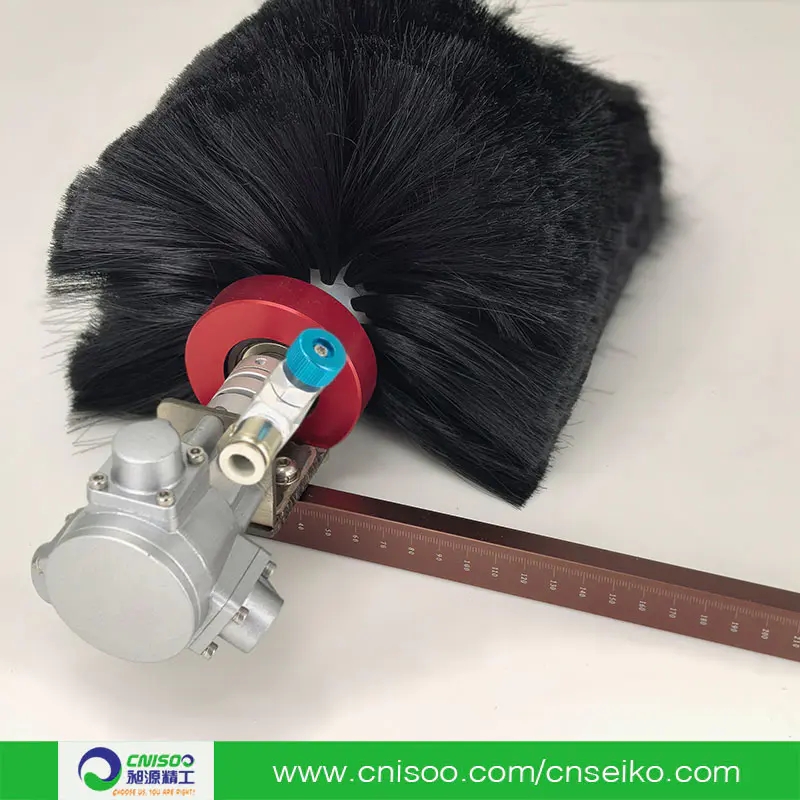

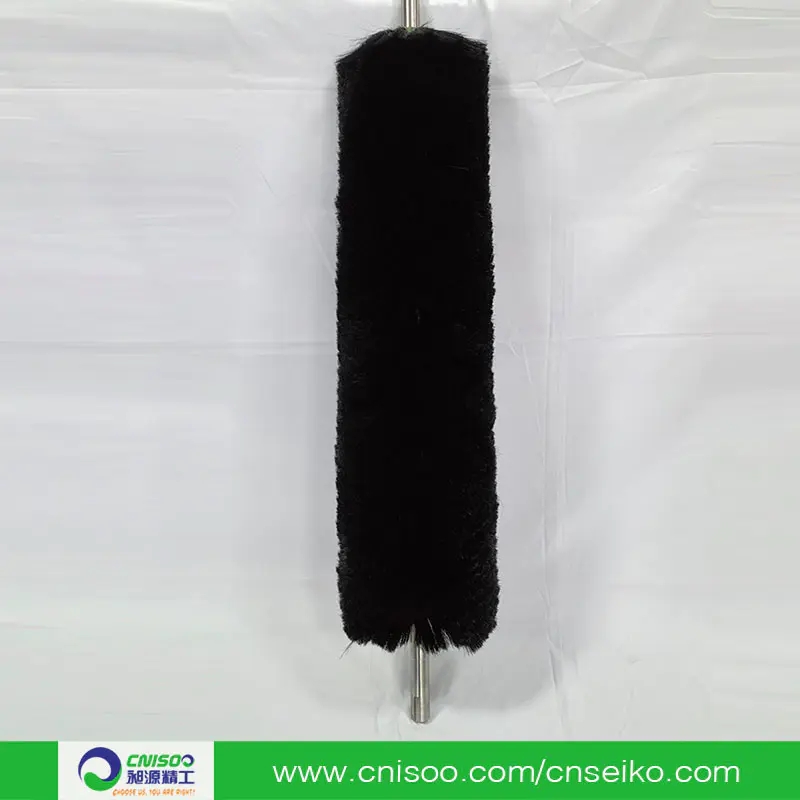

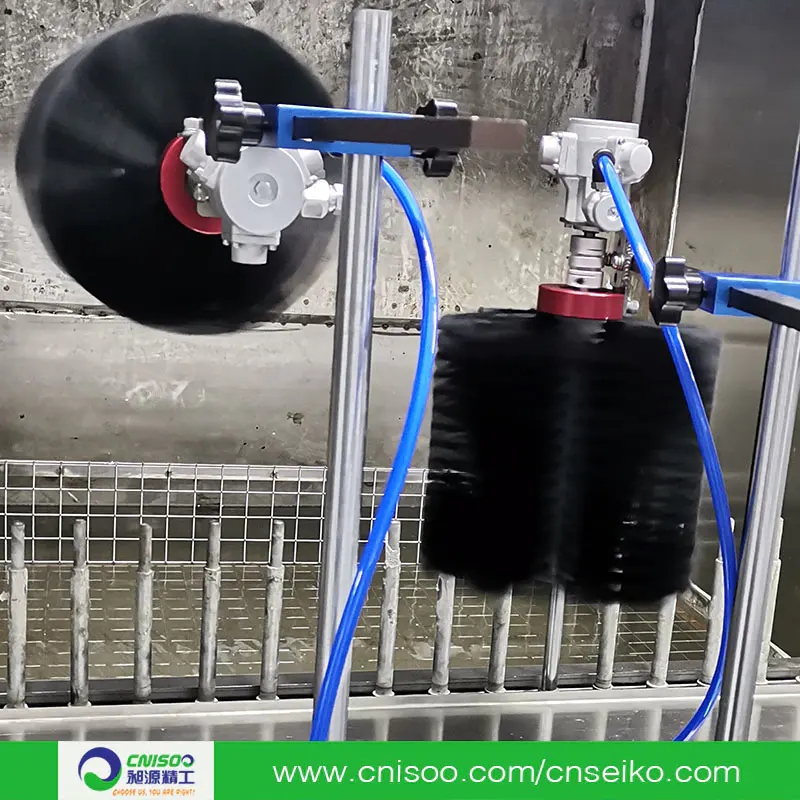

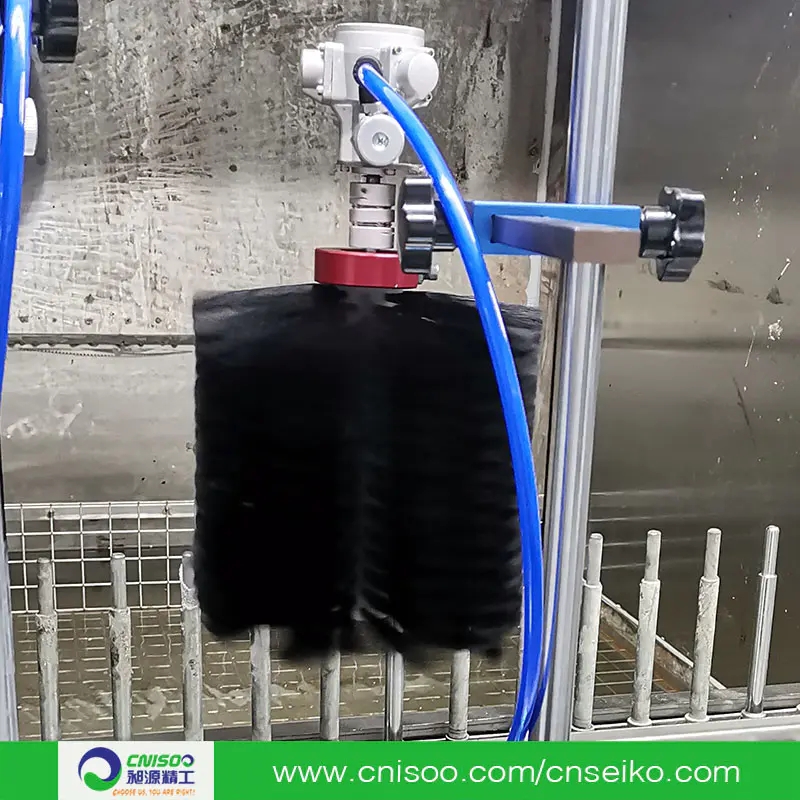

Wool wheel, used in the assembly line to remove dust particles on the surface of the workpiece, play a role in purifying the workpiece. The installation position is at the front end of the rear electrostatic dust removal on the workpiece. The traditional way uses the motor as the drive, the installation is troublesome, and the risk factor is high.

The wool wheel dust collector uses compressed air as power to eliminate sparks and guard the assembly line more safely. Make the dust removal station no longer worry about fire.

Equipped with compressed air regulator, the use of pressure to drive the air motor work, can achieve the speed of stepless speed regulation, for different products can be easily operated.

PRODUCT PARAMETER

Mode	16A
Main Body Material	Aluminum Alloy/Stainless Steel
Air Inlet Size	G1/4
Liquid Inlet Size	G3/8
Liquid Outlet Size	G3/8
Air Pressure	0.15~0.7MPa
Best Air Pressure	0.3~0.4MPa
Pressure Ratio	1:1
Max. Output	18L/min
Max. Size for Output Particle	1. 5mm
Temperature	5~40℃

Product Advantages

1、Air motor as a driver, safe and reliable
2、The installation space of the stepless speed regulation is the same size as the base of the gun frame, and can be equipped with 40*80mm aluminum profile slide rail
3、Equipped with mounting bracket, with adjustable handle screws, adjust the height distance is faster and more handy
4、Endless speed control box, SUS production, more likely to adapt to the spraying environment of evil
