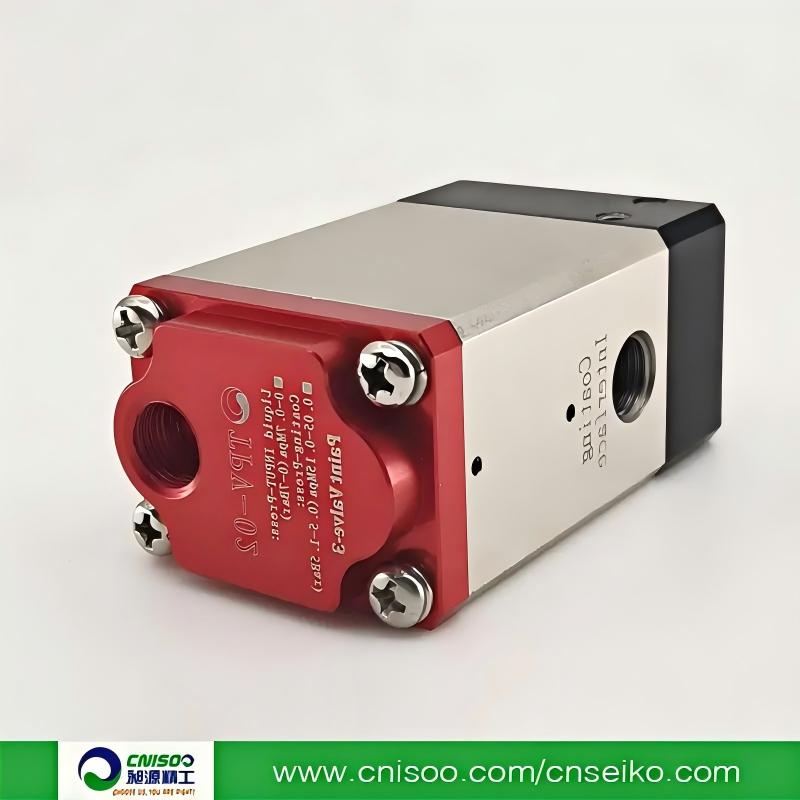

Paint three-way valve

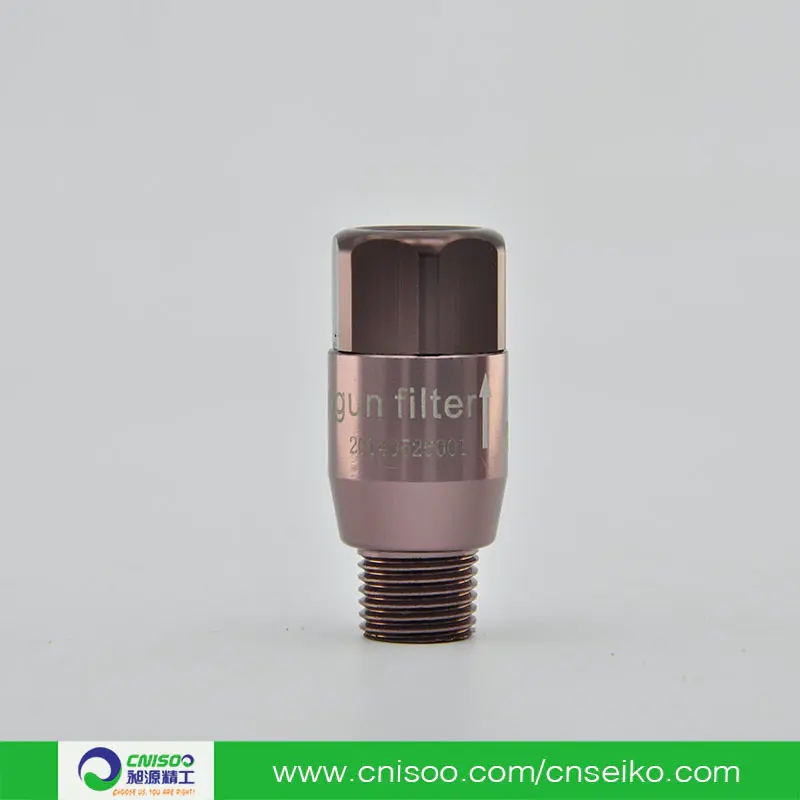

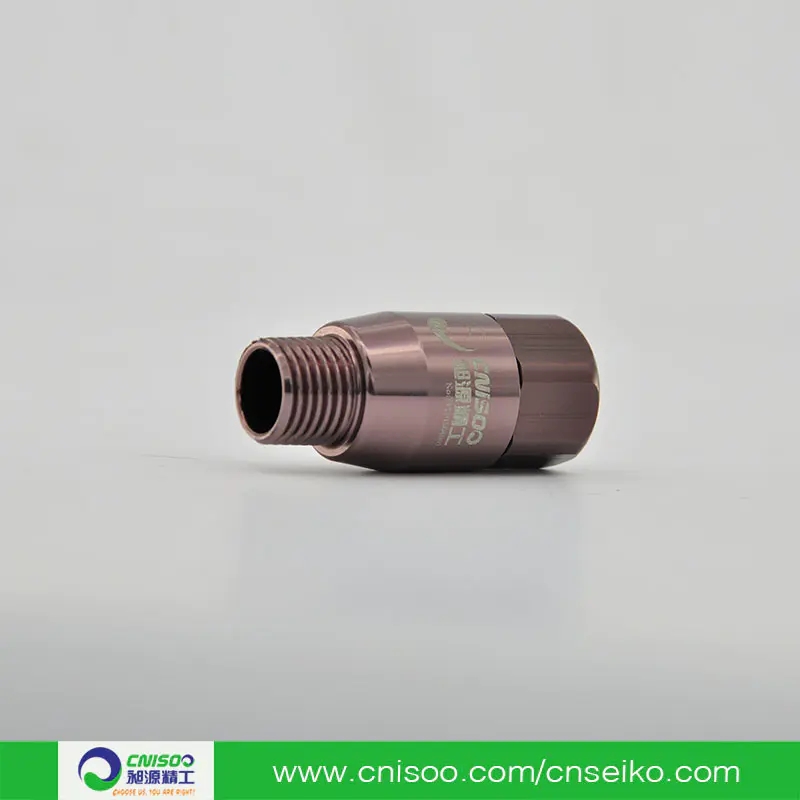

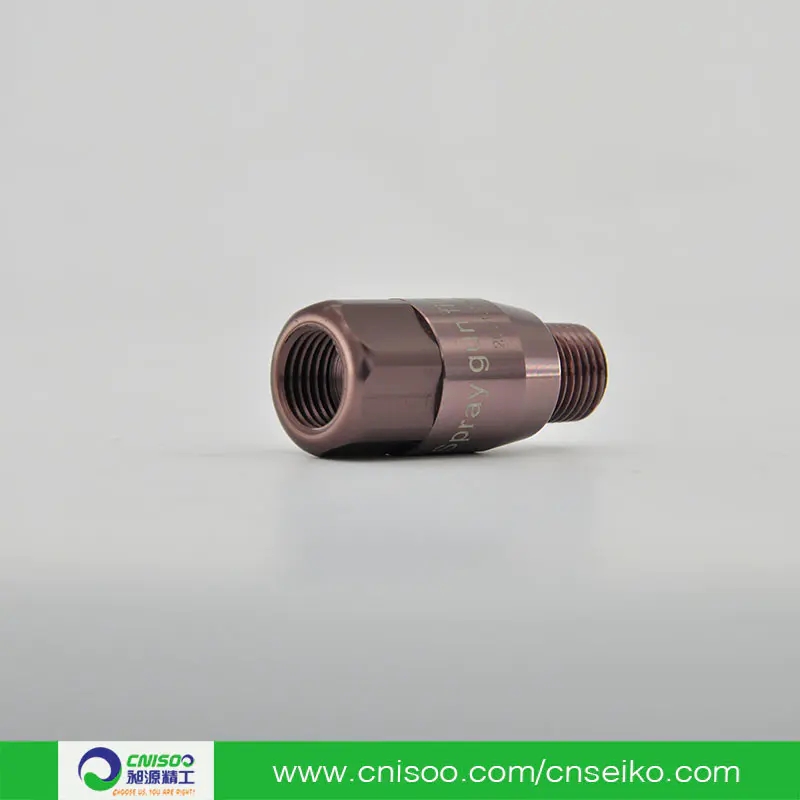

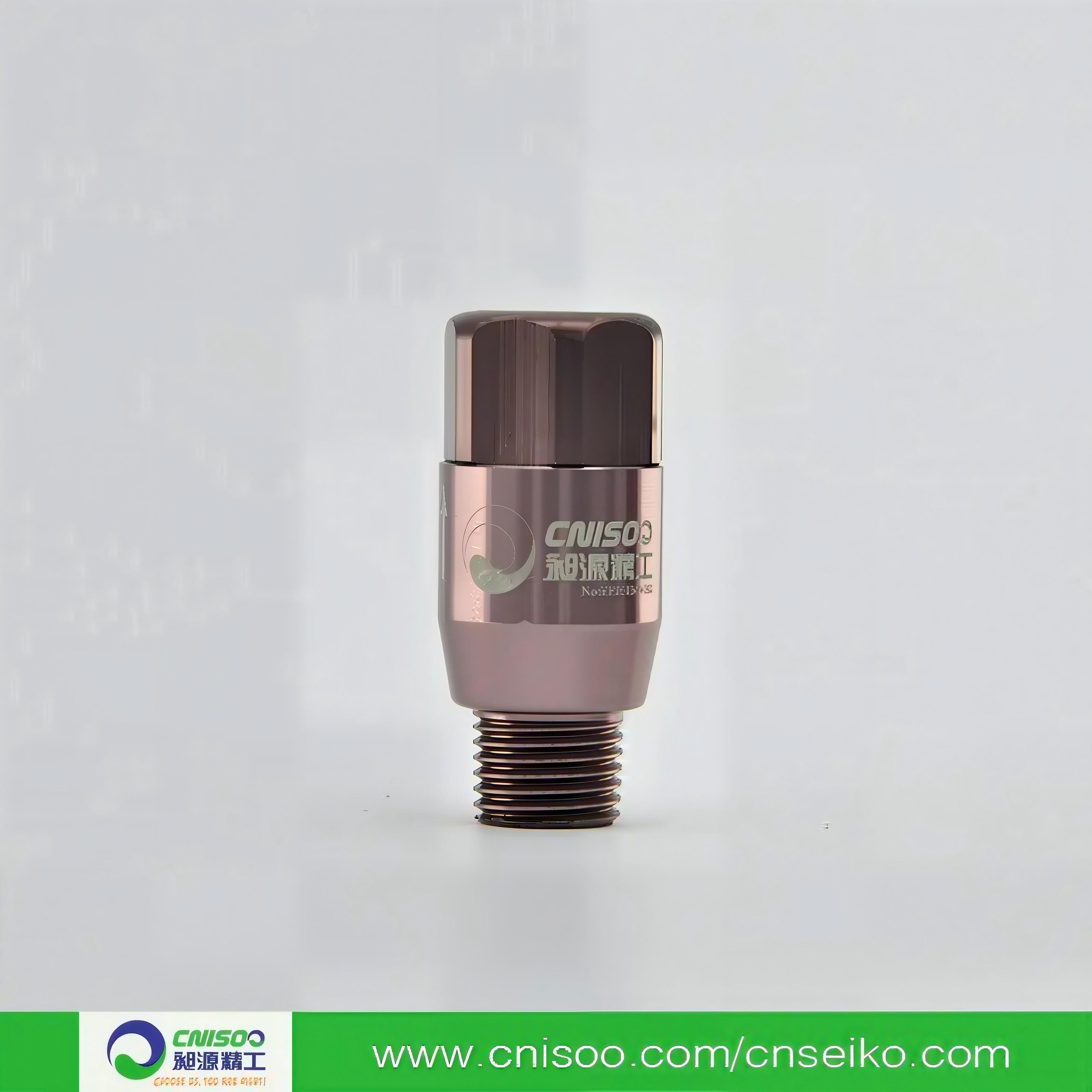

Customized mechanical engineering appearance Spray gun filter GF series
Customized mechanical engineering appearance Spray gun filter GF series
- GF-01
- 200
- 10Pcs
- Cash on delivery
- Lssued in 2 hours
PRODUCT FEATURES
Installed in the paint inlet area of a manual spray gun or the paint inlet area of an automatic spray gun, it prevents impurities in the paint from entering the paint channel of the spray gun and causing contamination to the product, with a compact size of only 45mm in length and weighing only 20g.
Use
1. The gun filter is installed in the paint inlet part of the manual spray gun or automatic spray gun to prevent the impurities in the paint from entering the paint runner, and then entering the spray gun and spraying onto the product, resulting in contamination of the product;
2. The gun-type filter has a low cost and does not need to be replaced, it only needs to be removed along with the spray gun when replacing the nature of the paint or changing the color of the paint, and the residue left on the cartridge filter can be removed and reused, realizing the environmentally friendly function of the coating process;
3. The gun filter has various models of mesh aperture, and they are all made of stainless steel, which can be used in a wide range.
| Model | GF-01 |
| Mainly body Material | Aluminum |
| Spray gun Connector | G1/4(PF 1/4 Internal thread) |
| Paint hose connector | G1/4(PF 1/4 external thread) |
| Paint filter | It is suitable for all models of spray gun |
Product details
■ High security: because the built-in high-voltage generator in the main body of the gun, so to achieve a high security;
■ Excellent processing: equipped with excellent direct injection and far-reaching reach of the nozzle, can achieve advanced coating effect;
■ High efficiency: with excellent direct injection and far-reaching reach of the nozzle, can achieve high efficiency;
■ Easy to use, comfortable feel: As a result of resin body with lightweight, handle streamlined design, ergonomic, handle just in his hand, do not feel tired for a long time;
■ A variety of adjustment and adjustment device: turn the regulator, you can easily adjust the amount of paint spray and spray, convenient and quick;
GF-01, a gun type filter installed at the entrance of the spray gun paint, works as follows:

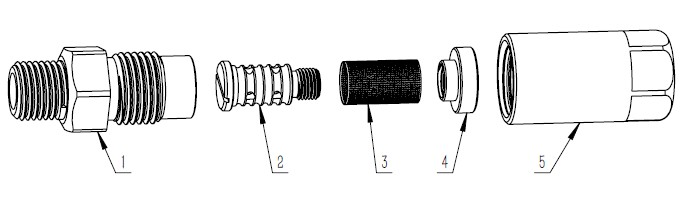

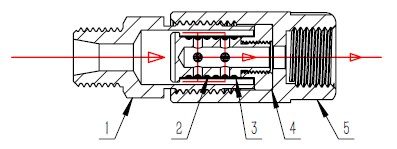

The paint enters the valve chamber from the filter valve chamber (1) with the outer tooth end (interface pipe) inner hole, filtered through the filter screen (3) into the filter element (2) inside, and then flows out through the filter valve body (5) with the inner tooth end (interface gun) inner hole, the impurities larger than the mesh aperture of the filter screen (3) will remain in the valve chamber, and can be removed when cleaning.

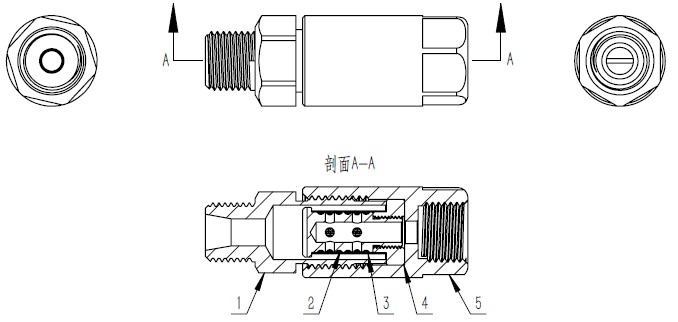

Schematic diagram of the structure
