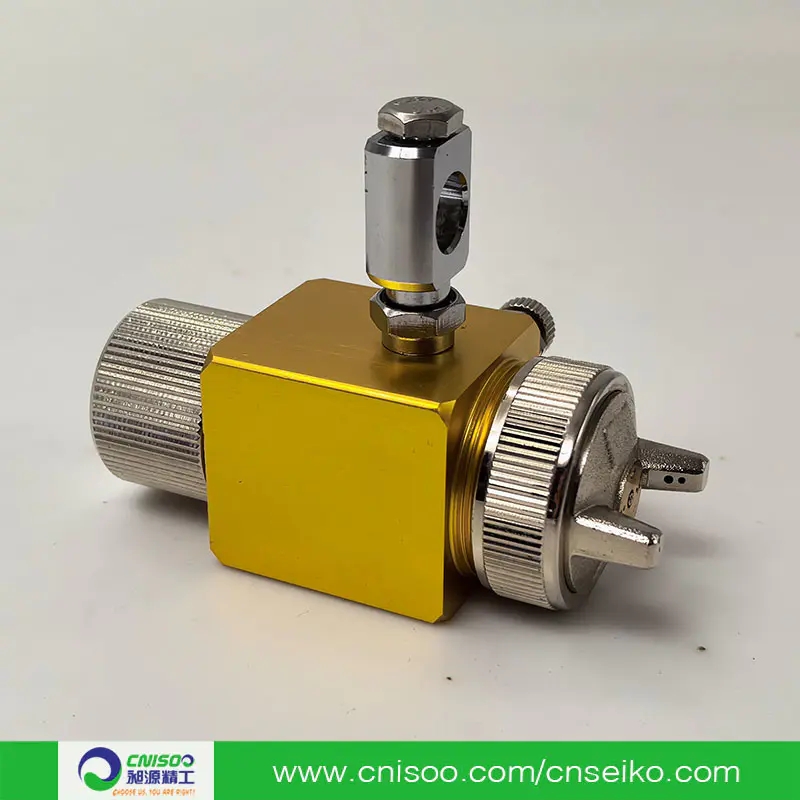

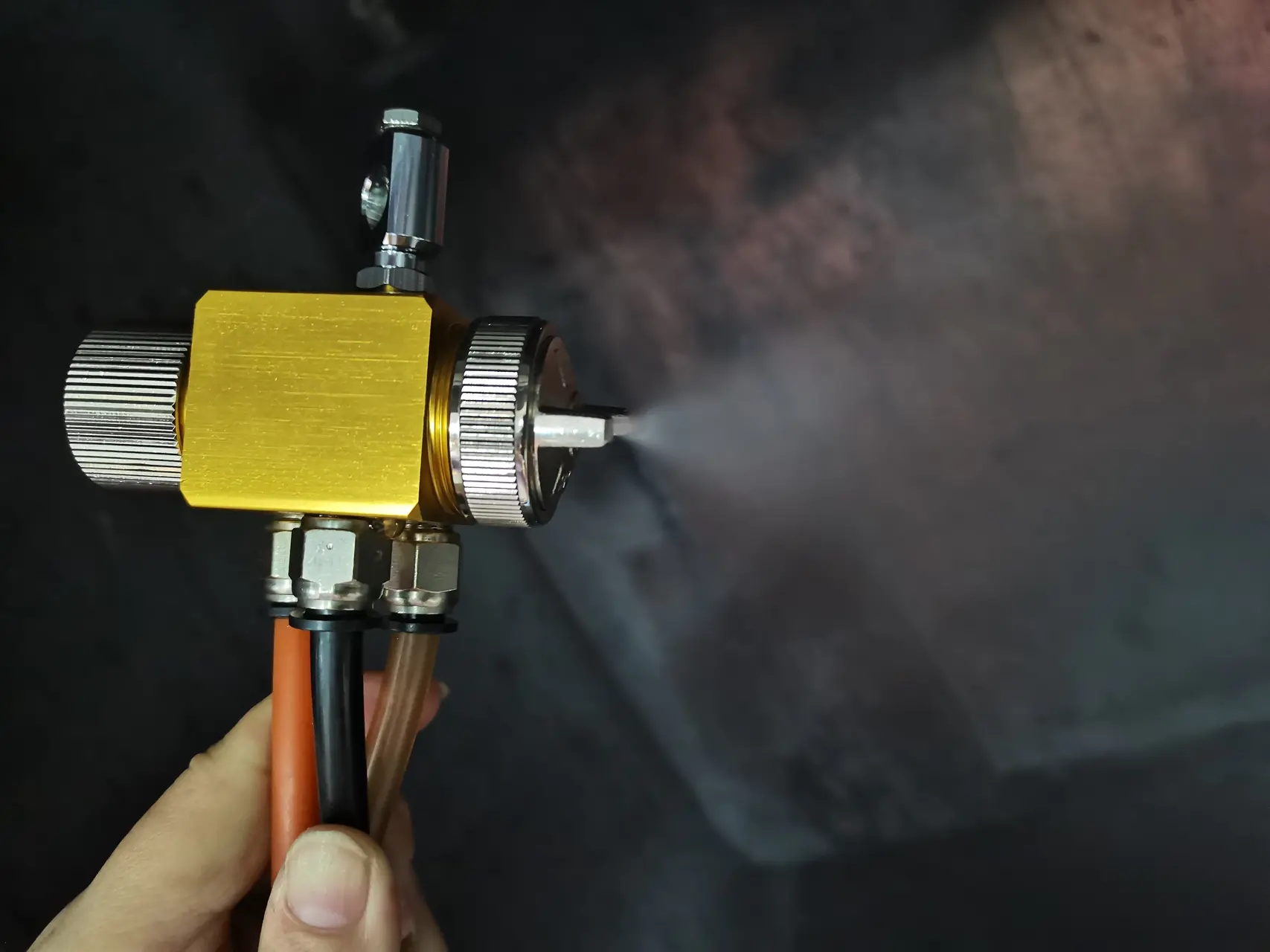

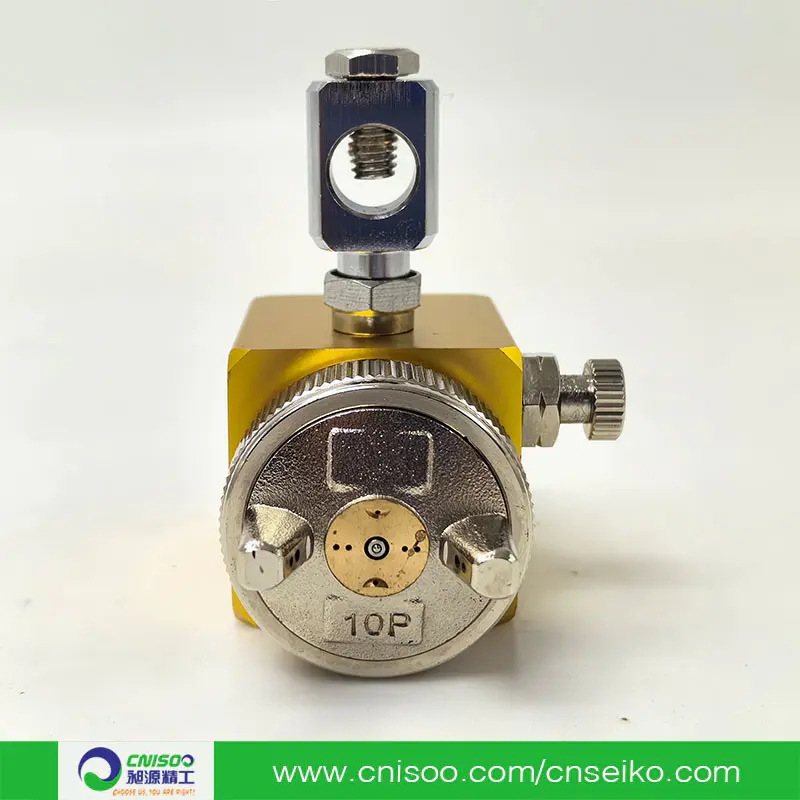

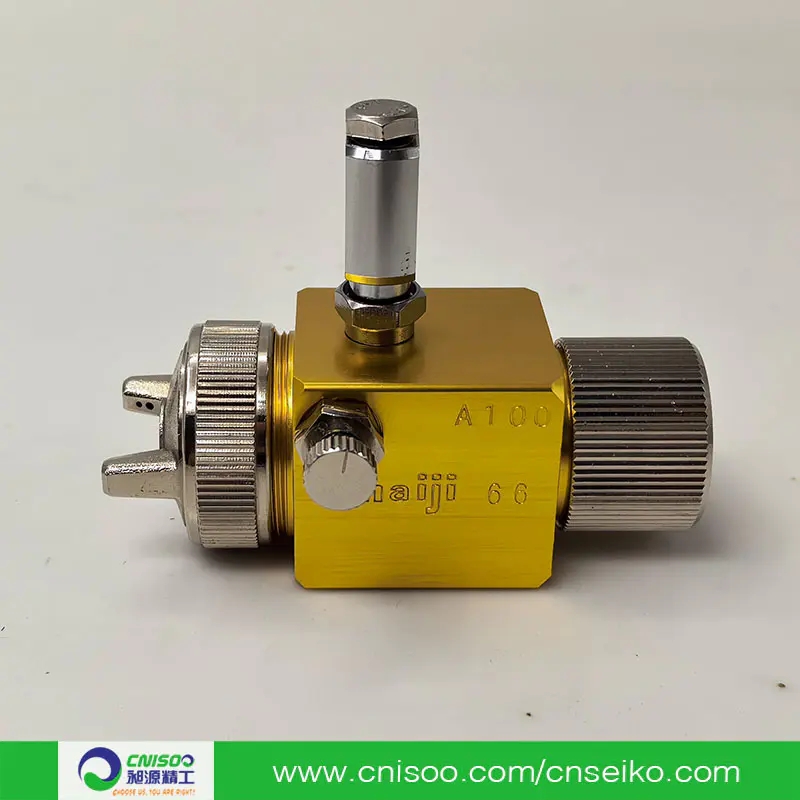

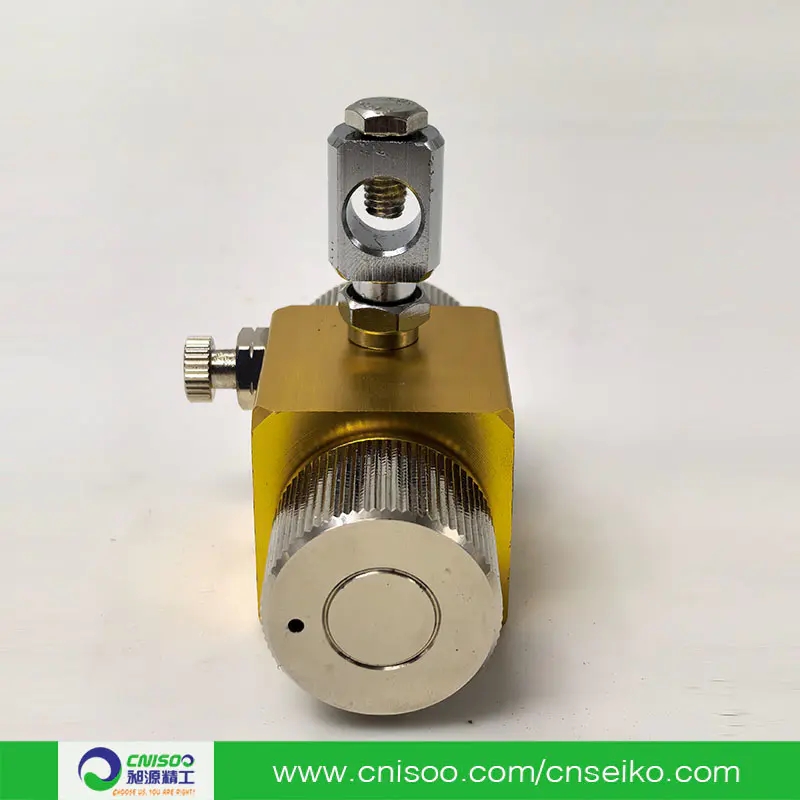

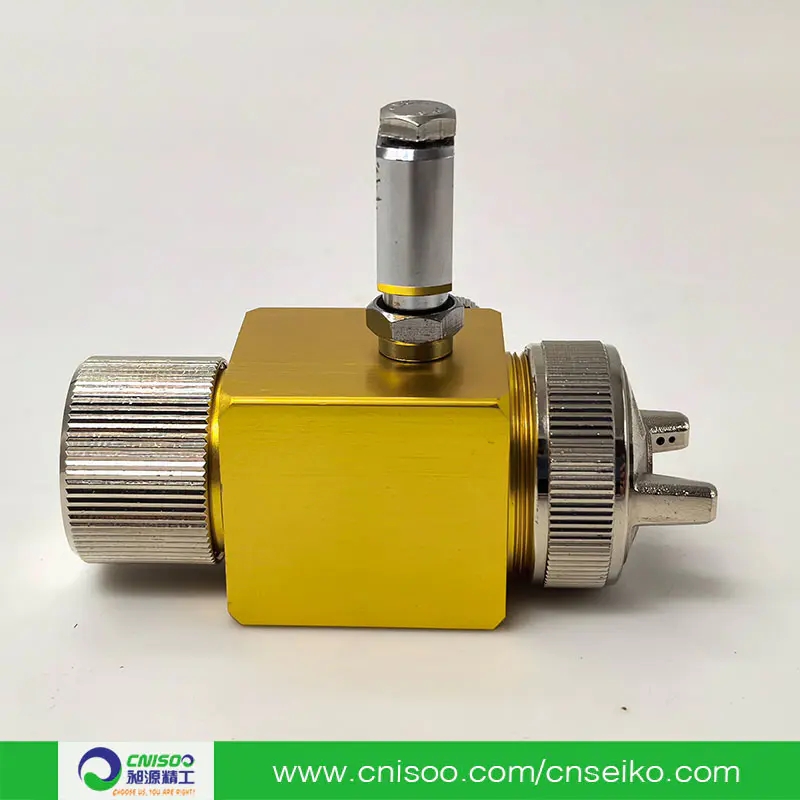

Mini Convenient Automatic Spray Gun for The Machinery Industry

Model:: CT180/WA-101/AU180

USD Unit Price:: 33

MOQ:: 1Pcs

Payment:: Cash on delivery

Delivery Time:: 1-7 days

Certification:: CN107081232A

Inquire Online
Download

Cancel

PRODUCT FEATURES

1.Light, ingenious,
2.Light and delicate design and can be installed in a narrow space.
3.Durable, no oil feed type.
4.(A100), needle-like seal on the paints side is made of unique U-shaped seal, so it has superior durability, achieved the using approach which without oil feed. Moreover, the needle-shaped seal on the air side is made of Teflon, so it is extremely durable.
5.Suitable for long remote operation
6.(A100) shape regulating valve (switch) can be operated of remote by air pressure.
7.It can be used with accessories of connection tube.
8.A100, SA200-type) air, paint (liquid) interface using the pipe thread (G1 / 4, Rc1 / 8, Rc / 4), can be used to connection tube parts which is selling in the market.

PRODUCT PARAMETER

Model	A100-P08	A100-P10	A100-P13	A100-P15
Material Feed Type	Pressure type
Nozzle Diameter(Φ mm)	0.8	1.0	1.3	1.5
Spraying Air Pressure(MPa)	0.34
Air Consumption(l/min)	270		290
Spraying Quantity(ml/min)	200	350	500	620
Spraying Pattern Width(mm)	225	250	260	280

1.The liquid passage , nozzle and needle are made of 316 stainless steel ,so this gun is anti-corrosion, suitable for both water-based paints and ordinary paints.
2.As manufactured by machine after birthed from the mold, it is of good quality.

3.Durable, no oil feed type.
4.(A100), needle-like seal on the paints side is made of unique U-shaped seal, so it has superior durability, achieved the using approach which without oil feed. Moreover, the needle-shaped seal on the air side is made of Teflon, so it is extremely durable.
5.Suitable for long remote operation
6.(A100) shape regulating valve (switch) can be operated of remote by air pressure.
7.It can be used with accessories of connection tube.
8.A100, SA200-type) air, paint (liquid) interface using the pipe thread (G1 / 4, Rc1 / 8, Rc / 4), can be used to connection tube parts which is selling in the market.

PRODUCT APPLICATIONS

1.Spray for small piece of low and middle viscosity, big piece of middle viscosity.

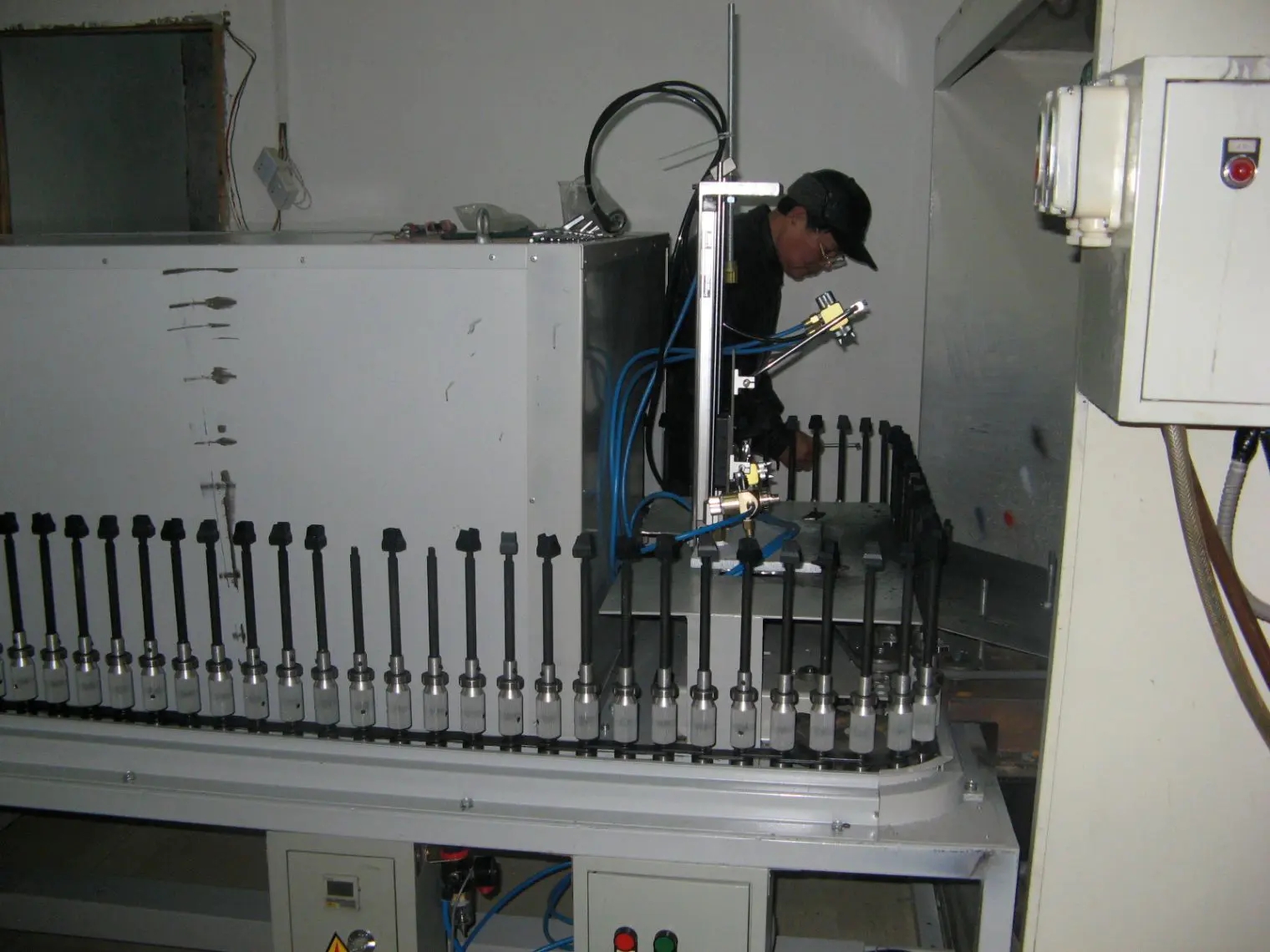

2.Suitable for packaging machinery industry, injection molding industry, printing industry, woodworking machinery industry, textile industry, surface spraying machinery and equipment industry, baking equipment industry, leather and shoes industry, electronics manufacturing industry, electrical equipment and other various industries.
